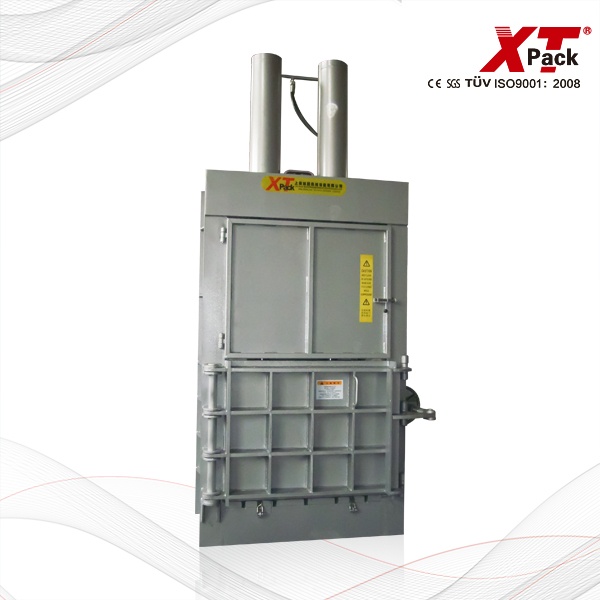

Usage of Aluminum Alloy Frame Balers
Widely used for compressing aluminum alloy frames etc.
Features of Aluminum Alloy Frame Balers
Automatic chain bale ejector for quickly and easily ejecting the bales out from the machine
Frond and back opening doors designs, conveniently for strapping
The ram will stop running downwards when the feeding gate is opened which ensure the safety of the operation
Equipped with independent emergency stop for safe operation
Equipped with Euro and U.S standard anti-rebound gate structure which makes sure the safety of operation
Special ram guides design makes the platen not slope because of uneven materials feedings during compression
Equipped with NOK seals that from Japan means longer lifespan of the seals
Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems
Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentricity, which replacing the common coupling connection so that extend the lifespan of the pump
Model | ||
Pressure | 120tons | 150tons |
Feed Opening Size (L*H) | 1200*500mm | 1500*600mm |
Baling Chamber Height | 1500mm | 1600mm |
Bale Size (L*W*H, H is adjustable) | 1200*800*(400-1000)mm | 1500*760*(400-1000)mm |
Bale Weight | 80-200kgs | 100-250kgs |
Power | 15kw | 18.5kw |
Machine Weight | 4500kgs | 5500kgs |
Machine Overall Dimension | 1700*1100*3600mm | 2200*1300*3800mm |
