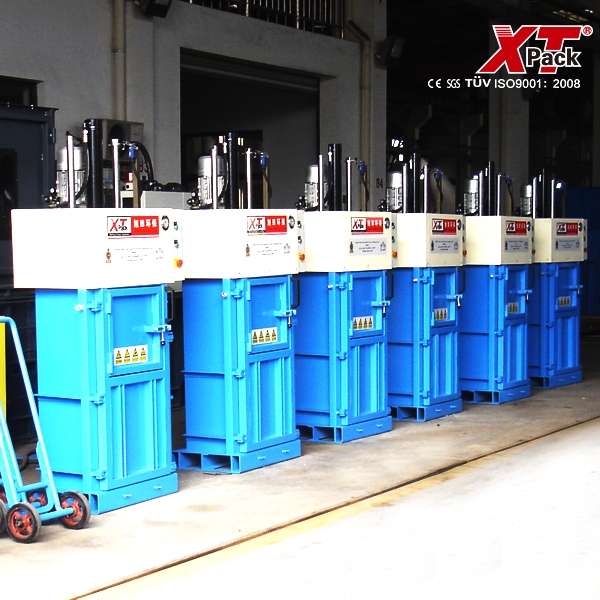

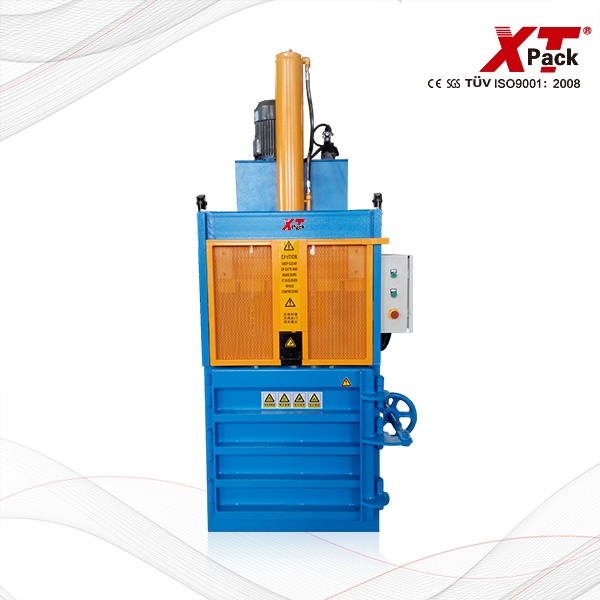

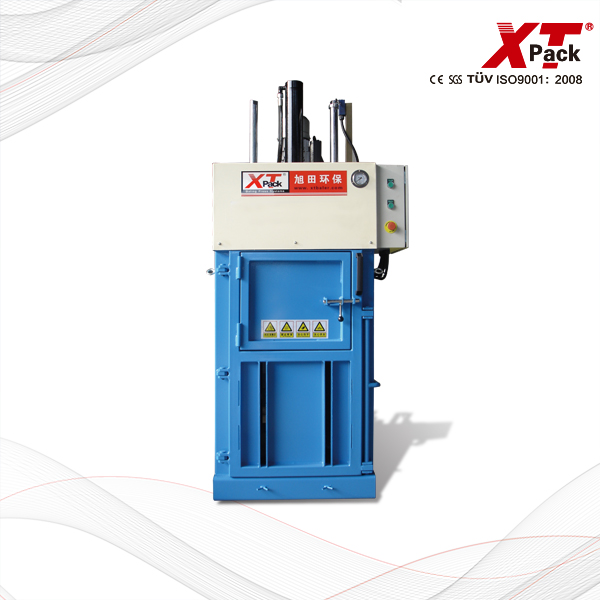

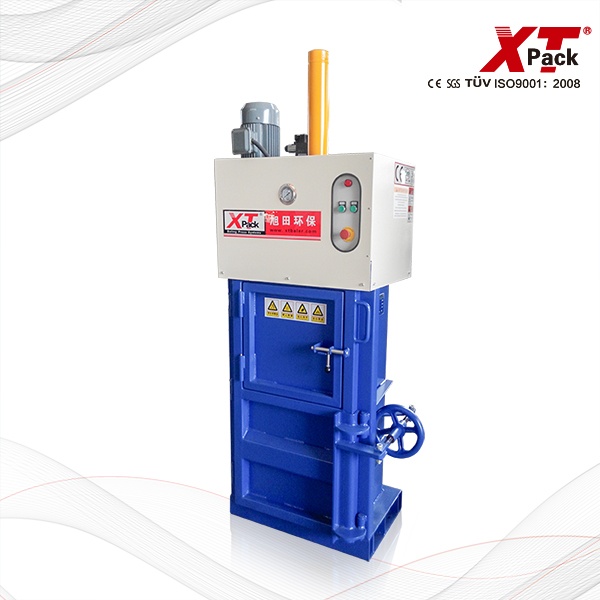

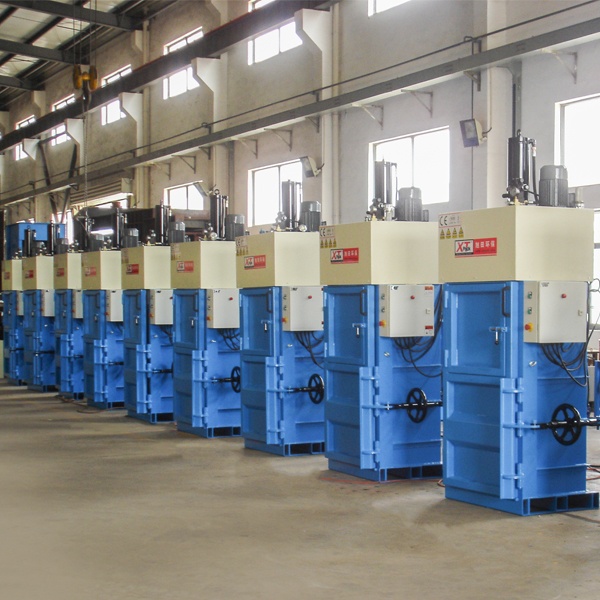

Usage of Small Vertical Balers
Specially used for compressing the waste like food residue, paper, plastics and textile etc. which widely applied by the vessels, hotels, resorts and factories etc.
Features of Small Vertical Balers
- Automatic chain bale ejector for quickly and easily ejecting the bales out from the machine
- Bottom liquid receiver is optional for collecting the liquid from the compressing materials
- The ram will stop running downwards when the feeding gate is opened which ensure the safety of the operation
- Equipped with independent emergency stop for safe operation
- Equipped with Euro and U.S standard anti-rebound gate structure which makes sure the safety of operation
- Special ram guides design makes the platen not slope because of uneven materials feedings during compression
- Equipped with NOK seals that from Japan means longer lifespan of the seals
- Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems
- Equipped with integrated valves that from Taiwan, conveniently for the maintenance
- Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentricity, which replacing the common coupling connection so that extend the lifespan of the pump
| Machine Type | Small Vertical Balers |
|
|
Twin Chamber Balers |
|
Model |
XYT-30L7050-D |
|||
|
Pressure |
5Tons |
10tons |
20tons |
3tons |
|
Feed Opening Size (L*H) |
600*400mm |
600*400mm |
700*400mm |
700*500mm |
|
Baling Chamber Height |
1000mm |
1000mm |
1200mm |
728mm |
|
Bale Size (L*W*H, H is adjustable) |
600*400*(200-600)mm |
600*400*(200-600)mm |
800*600*(400-800)mm |
700*500*(150-400)mm |
|
Bale Weight |
15-40kg |
20-50kgs |
60-120kgs |
30-60kgs |
|
Power |
1.5kw |
2.2kw |
3kw |
0.75kw |
|
Machine Weight |
650kgs |
800kgs |
1000kgs |
500kg |
|
Machine Overall Dimension |
900*570*2240mm |
900*570*2240mm |
1180*800*2550mm |
1600*560*1750mm |
